PDC Bit Size Chart: Dimensions, Specifications and Selection Guide

Polycrystalline Diamond Compact (PDC) bits are advanced drilling tools widely used in oil, gas, mining, geothermal, and horizontal directional drilling (HDD) applications. Their size, measured in inches or millimeters, is a critical factor in determining drilling efficiency, cost-effectiveness, and compatibility with the drilling rig and formation type. This comprehensive guide provides a detailed PDC bit size chart, explores whether a single size can be used across multiple projects, identifies appropriate sizes for HDD, and examines how bit size and blade count impact performance.

Quick Answer: What Are Common PDC Bit Sizes?

PDC bit sizes typically range from small-diameter bits used for specialized drilling applications to larger sizes designed for oilfield, mining, and HDD projects. Common selection factors include bit diameter, blade count, cutter size, body type, nozzle configuration, and formation characteristics. Choosing the correct PDC bit size helps maintain drilling efficiency, stability, and overall bit performance.

PDC Bit Sizes and Specifications Overview

What Are the Most Common PDC Bit Sizes in the Market?

PDC bit sizes are standardized to meet the needs of various drilling applications, particularly in oil and gas, where they align with the casing program to ensure proper hole sizing. For buyers looking for pdc bits for sale, understanding these standardized sizes is essential before selecting the right bit for different formations. Here's a summarized chart of frequently used PDC bit sizes and their typical applications:

These sizes are designed to be slightly larger than the casing’s drift diameter to account for wear, ensuring the hole remains within specifications. For example, a 12 1/4" bit is commonly used for sections cased with 9 5/8" casing, while a 26" bit is used for surface sections with larger casings.

In other applications:

• Water Well and HDD: Smaller sizes, such as 1" to 3", are used for pilot holes or smaller projects.

• Mining and Geothermal: Sizes often align with oil and gas standards but may include customized designs for specific geological conditions.

Excellent Drill Bits offers PDC bits ranging from 3" to 26", with customization options to meet diverse project needs. These sizes are widely available and adhere to API standards for compatibility and reliability.

PDC Drill Bit Specifications Buyers Should Compare

Bit diameter is only one part of a complete PDC drill bit specification. Before placing an order, buyers should compare the structural, hydraulic, and operating parameters of each design to determine whether the bit is compatible with the formation, drilling rig, and target hole section.

The main PDC drill bit specifications to review include:

• Bit diameter: The outside diameter must match the required borehole size and casing program.

• Body type: Matrix-body PDC bits provide strong resistance to erosion and abrasive wear, while steel-body designs offer greater flexibility for structural customization and repair.

• Blade count: Fewer blades generally provide more open junk-slot space, while higher blade counts can improve load distribution and stability in demanding formations.

• PDC cutter size: Cutter diameter and thickness influence aggressiveness, impact resistance, heat generation, and wear life.

• Cutter density and layout: The number and position of cutters affect cutting efficiency, durability, directional response, and resistance to vibration.

• Bit profile: Cone depth, nose position, shoulder shape, and gauge length influence stability, steerability, and cutter loading.

• Nozzle configuration: Nozzle quantity, size, and position determine how effectively drilling fluid cleans and cools the cutting structure.

• Gauge protection: Reinforced gauge cutters or wear-resistant inserts help maintain the required hole diameter in abrasive formations.

• Connection type: The thread connection must match the drill string or required crossover specification.

• Recommended operating parameters: The proposed bit should be evaluated against the rig’s available weight on bit, rotary speed, torque, and flow rate.

When requesting a quotation, buyers should provide the required bit size together with formation information, drilling application, target depth, connection type, rig parameters, and any previous bit performance data. These details allow the manufacturer to recommend a more appropriate cutting structure instead of selecting a bit by diameter alone.

Can a Single PDC Bit Size Work for Multiple Projects?

Using a single PDC bit size across multiple drilling projects is generally not advisable due to the unique requirements of each project. Several factors make this approach challenging:

• Formation Variability: Different geological formations require specific bit designs. Soft formations like shale benefit from larger bits with fewer cutters for aggressive cutting, while hard formations like granite require smaller bits with more cutters for durability.

• Casing Program: The bit size must align with the casing program, which varies from well to well. For example, a 12 1/4" bit used for a deep well may not be suitable for a shallow well with a different casing size.

• Depth and Rig Capabilities: Deeper wells require larger bits for stability, while rig limitations may restrict the use of certain sizes. Using a bit that exceeds the rig's torque or weight on bit (WOB) capacity can lead to inefficiencies or equipment failure.

However, there are exceptions. If multiple projects have nearly identical conditions—such as drilling multiple wells in the same field with the same casing program and formation type, a single bit size might be feasible. Even in such cases, careful evaluation is necessary to ensure optimal performance. Bit selection should consider specific formation characteristics and drilling parameters.

Practical Considerations:

• Cost vs. Efficiency: Using a single size may reduce inventory costs but could compromise drilling efficiency if the bit is not optimized for the formation.

• Customization: Excellent Drill Bits offer customized solutions, making it easier to tailor bit sizes to specific project needs rather than relying on a one-size-fits-all approach.

In summary, while a single PDC bit size might work for very similar projects, it’s generally not practical due to the diverse requirements of most drilling operations.

What Size PDC Bit Should You Use for Horizontal Drilling?

Horizontal directional drilling (HDD) involves drilling a pilot hole followed by reaming to achieve the desired hole diameter, requiring PDC bits tailored to these tasks. The size of the PDC bit depends on the project’s requirements, including the final hole diameter and formation type. Common hdd drill bits such as PDC bits are widely used in this process, and their sizes include:

• Pilot Hole: Smaller bits (3-1/2" to 6-1/2") are used to create the initial path. These bits are designed for steerability, often featuring concave heads and short skirts to reduce side pressure and protect cutters from chipping.

• Reaming: Larger bits or reamers, up to 700 mm, are used to enlarge the hole to the final diameter.

The choice of bit size depends on:

• Hole Diameter: The final hole size dictates the reamer size, while the pilot hole size is typically smaller.

• Formation Type: Soft formations like sand or shale may use smaller, aggressive bits, while harder formations require more durable designs.

• Steerability: HDD bits must maintain directional control, often requiring specialized designs like steering PDC bits.

For example, a 12 1/4" PDC bit with 5 or 6 blades is commonly used for HDD in medium-hard formations, offering a balance of cutting efficiency and directional control.

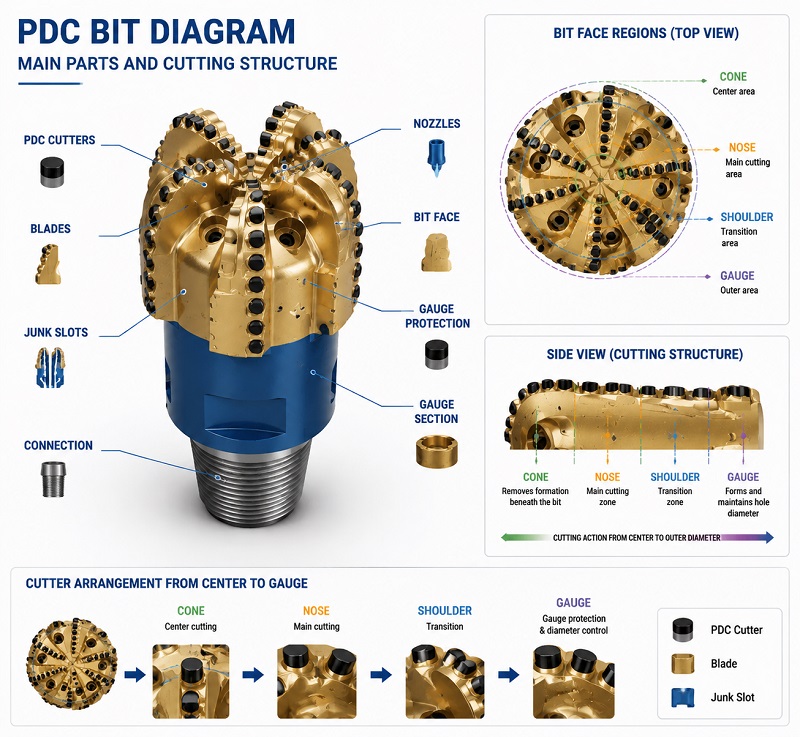

PDC Bit Diagram: Main Parts and Cutting Structure

A PDC bit diagram helps buyers understand why two bits of the same diameter may deliver different drilling performance. The cutting structure, hydraulic layout, body profile, and gauge design all influence how the bit engages the formation and removes cuttings from the bottom of the hole.

The main parts of a PDC bit include:

• PDC cutters: Synthetic diamond cutting elements that shear the formation as the bit rotates.

• Blades: Raised structures that support and position the cutters across the bit face.

• Bit face: The working surface containing the cone, nose, shoulder, and gauge regions.

• Junk slots: Open channels between the blades that allow drilling fluid and rock cuttings to move away from the cutting face.

• Nozzles: Fluid outlets that direct drilling fluid toward the cutters and bottom-hole area for cleaning and cooling.

• Gauge section: The outer part of the bit that maintains the required hole diameter and supports borehole stability.

• Gauge protection: Wear-resistant cutters or inserts that reduce diameter loss in abrasive formations.

• Connection: The threaded section used to connect the PDC bit to the drill string or drilling assembly.

The cutter arrangement changes from the center of the bit toward the gauge. Cutters near the cone and nose primarily remove the formation beneath the bit, while shoulder and gauge cutters help form and maintain the full hole diameter. Blade shape, cutter exposure, back rake, and spacing can be adjusted to balance aggressiveness, durability, stability, and cuttings evacuation.

How Do Size and Blade Count Relate to Performance?

The performance of a PDC bit is heavily influenced by its size and blade count, which must be optimized for the specific drilling conditions:

• Bit Size:

• Larger Bits (e.g., 12 1/4" to 26"): Provide greater stability, making them ideal for deep wells and hard formations. They have a larger surface area for cutters, distributing the load evenly and reducing wear. However, they may require higher torque and hydraulic flow.

• Smaller Bits (e.g., 3-1/2" to 6"): Are more aggressive, achieving higher rates of penetration (ROP) in soft formations like shale or sandstone. However, they may wear faster in hard or abrasive formations due to the higher load on each cutter.

• Blade Count:

• More Blades (e.g., 6-9): Increase stability and durability by distributing the cutting load across more cutters. This is beneficial in hard or abrasive formations, where wear resistance is critical. However, more blades can reduce ROP in soft formations due to increased friction.

• Fewer Blades (e.g., 3-5): Allow for more aggressive cutting in soft formations, improving ROP. However, they may lack stability in hard formations, leading to faster wear or vibration issues.

• Performance Impact:

• Soft Formations: Smaller bits with fewer blades (e.g., 4-1/2" with 4 blades) are ideal for high ROP, as they shear through rock efficiently with less friction.

• Hard Formations: Larger bits with more blades (e.g., 12 1/4" with 6 blades) provide better stability and durability, reducing the risk of cutter damage.

• Horizontal Drilling: Bits with specific blade configurations, such as those with concave heads or steering designs, enhance directional control and reduce vibration.

• Drilling Parameters: PDC bits perform best with low WOB and high RPM. The bit size and blade count must align with the rig’s capabilities to avoid excessive torque or vibration.

For example, a 6-blade PDC bit in a 12 1/4" size might be used for HDD in medium-hard formations, offering a balance of stability and cutting efficiency, while a 4-blade 4-1/2" bit might be chosen for a water well in soft shale for faster drilling.

How to Choose the Right PDC Bit Size by Formation and Drilling Conditions

The required hole diameter usually determines the basic PDC bit size, but formation characteristics and drilling conditions determine the most suitable cutting structure within that size. Buyers should therefore select the diameter first and then confirm the blade count, cutter configuration, bit profile, hydraulic design, and gauge protection.

The following factors should be evaluated before confirming a PDC bit size and design:

• Required hole diameter: Confirm the finished borehole size and any casing or completion requirements.

• Formation strength: Soft, medium, hard, and interbedded formations place different loads on the cutters.

• Abrasiveness: Abrasive sandstone and similar formations may require additional gauge and cutter protection.

• Formation uniformity: Interbedded or fractured formations can increase impact loading and vibration.

• Target depth: Drilling depth affects hydraulic requirements, operating time, and the cost of replacing a worn bit.

• Directional requirements: Directional and horizontal drilling may require a profile designed for steerability and stable tool-face response.

• Rig capacity: The rig must be able to provide the required torque, rotary speed, weight on bit, and drilling-fluid flow.

Formation type should not be used to select bit diameter independently. For example, a hard formation does not automatically require a larger or smaller bit. The required hole program determines the diameter, while the formation determines how the PDC bit should be designed within that diameter.

For a more accurate recommendation, provide formation logs, rock samples or descriptions, compressive strength data when available, drilling-fluid information, rig parameters, and performance records from previously used bits.

When Should You Use Custom PDC Bit Sizes?

Standard sizes work for most applications, but custom sizing is ideal when:

• Drilling an uncommon casing program

• Facing unique geological formations

• Needing non-circular or underreamed wellbores

• Engaged in experimental or prototype wells

Excellent Drill Bits offers custom PDC bit design services to ensure your bit size matches the well design perfectly. We work closely with clients to tailor everything from size and blade count to cutter density and back rake angle.

Selecting the right PDC bit size is a critical decision that impacts drilling efficiency, cost, and project success. The most common sizes in the market, ranging from 3 7/8" to 26", are tailored to oil and gas casing programs, with smaller sizes for HDD and water well applications. Using a single bit size across multiple projects is generally not practical due to varying formation types and casing requirements, though it may be feasible for very similar projects. For HDD, bit sizes range from 3-1/2" for pilot holes to 700 mm for reaming, depending on the hole diameter and formation. The relationship between bit size and blade count is crucial, with larger bits and more blades offering stability in hard formations, and smaller bits with fewer blades providing aggressive cutting in soft formations. By understanding these factors and consulting with manufacturers like Excellent Drill Bits, drilling professionals can optimize their operations for maximum efficiency and cost-effectiveness.

FAQ About PDC Bit Sizes and Specifications

What are the most common PDC bit sizes?

Common PDC bit sizes include 3 7/8, 4 1/4, 4 3/4, 5 7/8, 6 1/8, 6 1/4, 8 1/2, 8 3/4, 9 7/8, 12 1/4, and 17 1/2 inches. The required size depends primarily on the target hole diameter, casing program, and drilling application.

How is PDC bit size measured?

PDC bit size is normally measured across the maximum outside diameter of the gauge section. Sizes may be specified in inches or millimeters. The measured diameter should be checked against the required borehole and casing specifications before drilling.

How do I match a PDC bit size to the required hole diameter?

The nominal bit diameter should correspond to the required drilled-hole size while allowing for casing, completion design, and applicable clearance requirements. Buyers should provide the casing or borehole program to the bit manufacturer before confirming the specification.

Does PDC bit size affect drilling performance?

Yes. A change in diameter affects the cutting area, torque demand, hydraulic requirements, cutter loading, and compatibility with the rig. However, drilling performance is also strongly influenced by blade count, cutter layout, bit profile, formation characteristics, and operating parameters.

What specifications should be provided when ordering a PDC bit?

Buyers should provide the required diameter, drilling application, formation description, target depth, body preference, connection type, rig parameters, drilling-fluid conditions, and any available performance data from previously used bits.

Can PDC bits be manufactured in custom sizes?

Yes. Custom PDC bit sizes can be produced for non-standard boreholes, special casing programs, research projects, directional drilling, and formation-specific applications. Customization may also include blade count, cutter size, profile, connection, gauge length, and nozzle arrangement.
