What Is a PDC Bit?

Drilling for oil, gas, minerals, or geothermal energy requires specialized tools to penetrate diverse rock formations efficiently. Among these, Polycrystalline Diamond Compact (PDC) bits have revolutionized the industry with their advanced technology, offering superior speed and durability. Since their introduction in the 1970s, PDC bits have become a cornerstone in applications like oil and gas exploration, mining, and geothermal drilling. This comprehensive guide explores what PDC bits are, how they function, their key components, their suitability for hard rock drilling, the industries that rely on them, and how they compare to Tricone bits.

What Does "PDC" Stand For in Drilling?

PDC stands for Polycrystalline Diamond Compact, a synthetic diamond material used in the cutting elements of drill bits. These cutters are created by bonding a thin layer of polycrystalline diamond to a tungsten carbide substrate under high pressure and temperature, resulting in an exceptionally hard and wear-resistant tool. This durability allows PDC bits to maintain a sharp cutting edge, even in challenging drilling conditions.

Introduced commercially in the late 1970s, PDC bits marked a significant advancement over traditional roller cone bits. Their ability to drill faster and last longer in specific formations has made them a preferred choice in modern drilling. PDC bits are nearly as common as roller cone bits in many drilling applications due to their efficiency and longevity.

How a PDC Bit Works: The Technology Behind the Tool

PDC bits are shear-type drilling tools, meaning they cut through rock using a continuous shearing action. Unlike roller cone bits that crush the formation, PDC bits slice it cleanly. This action leads to faster drilling speeds and cleaner boreholes.

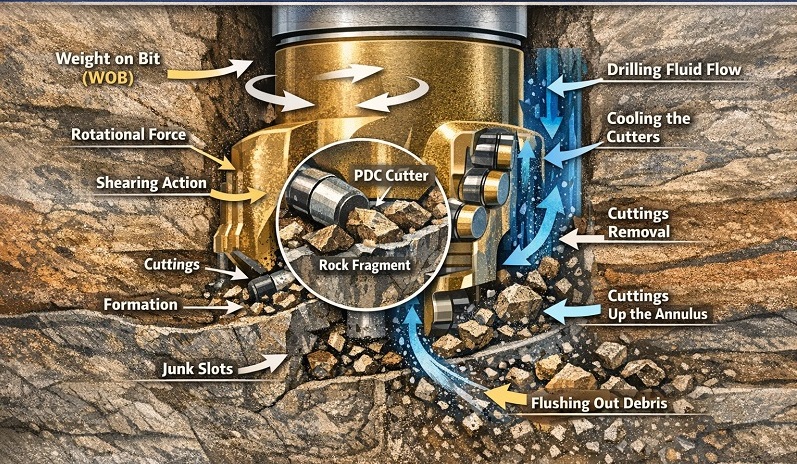

Here's a simplified step-by-step breakdown of how a PDC bit operates:

1. Rotation: The bit rotates at high RPM via the drill string.

2. Weight on Bit (WOB): Downward force is applied to allow the cutters to engage with the rock.

3. Shearing: As the PDC cutters rotate, they shear off thin layers of rock.

4. Removal: Drilling mud flushes the cuttings up through the annulus to clear the borehole.

Because of this mechanism, PDC bits are particularly effective in homogeneous, medium-hard formations.

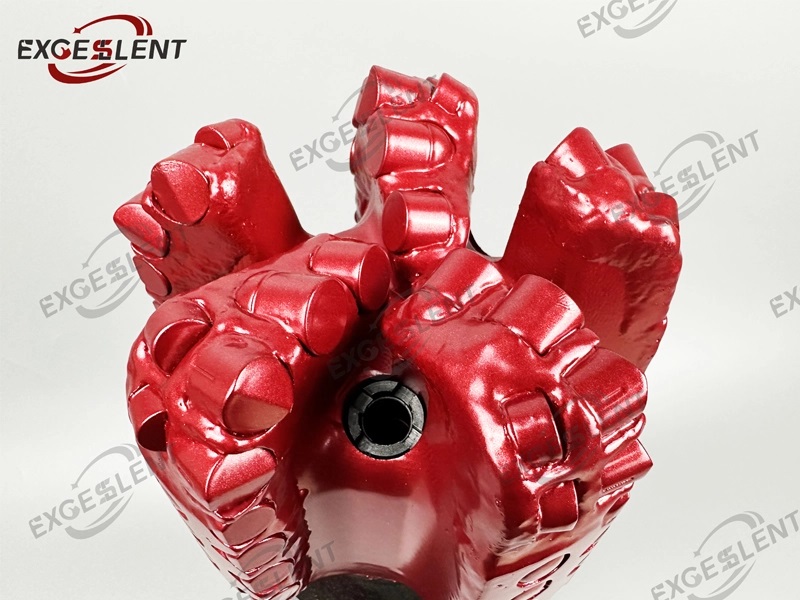

Key Components of a PDC Bit: Cutters, Blades, and Matrix

A PDC bit comprises several engineered elements for optimal performance:

• PDC Cutters: The primary cutting elements. Sizes range from 8-19 mm; shapes include flat, conical, or ridged for specific needs (e.g., impact resistance). Premium cutters feature thicker diamond tables and enhanced bonding.

• Blades: Cutters mount on 3-9 blades (more blades = greater stability in hard rock; fewer = more aggressive ROP in soft rock).

• Bit Body: Either matrix (tungsten carbide composite for erosion/abrasion resistance) or steel (high-strength alloy for impact toughness and repairability).

• Hydraulic System: Nozzles (fixed or interchangeable) and junk slots ensure efficient cooling and cuttings evacuation.

• Gauge Protection: Tungsten carbide inserts, diamond studs, or hardfacing maintain borehole diameter.

• Shank and Connection: API threaded pin for attachment to the drill string.

Where Do PDC Bits Perform Best? Formation Suitability and Limitations

PDC bits are celebrated for their efficiency, durability, and ability to deliver high ROP (Rate of Penetration) in many drilling environments. However, their performance is not universal across all rock types. Understanding where they work best—and where they don’t—is crucial to optimizing your drilling strategy.

✔ Best Performing Formations for PDC Bits:

• Soft to Medium-Hard Rock: Formations such as shale, limestone, dolomite, and sandstone are ideal for PDC cutters due to their consistent and non-abrasive nature.

• Homogeneous Formations: PDC bits perform better in stable and uniform strata where shear cutting can be maintained without sudden impact or vibration.

Limitations of PDC Bits:

• Hard and Abrasive Rock: In highly abrasive formations like granite or chert, PDC cutters wear out quickly or may chip.

• Interbedded or Fractured Zones: Unpredictable geological layers with mixed lithology can cause vibration, impact damage, or premature bit failure.

• High Impact Environments: Tricone bits or hybrid bits are often better suited in these conditions due to their shock resistance.

Industry Insight:

Recent innovations, such as thermally stable polycrystalline (TSP) cutters, ridge-shaped cutters, and hybrid designs, have expanded the use of PDC bits into harder formations. However, when selecting a bit, always consider formation abrasiveness, compressive strength, and structural integrity before choosing PDC over tricone or other alternatives.

Common Industries That Rely on PDC Bits (Oil, Gas, Mining)

PDC bits are integral to several industries due to their efficiency and durability:

• Oil and Gas: PDC bits are widely used for drilling exploration and production wells, offering high ROP and reduced downtime. They are effective in formations like shale and limestone, critical for oil and gas reservoirs. Sanlong Petroleum provides PDC bits from 3 to 26 inches, tailored for these applications.

• Mining: In mining, PDC bits are used for surface and underground drilling, extracting minerals from hard rock formations. Their durability minimizes bit changes, improving operational efficiency.

• Geothermal: PDC bits withstand the high temperatures and pressures of geothermal drilling, enabling access to underground heat sources.

• Water Well and HDD: Smaller PDC bits (1 to 3 inches) are used in water well drilling and horizontal directional drilling (HDD) for pilot holes.

These industries benefit from PDC bits' ability to reduce drilling costs and enhance performance, making them a preferred choice globally.

How to Choose the Right PDC Bit

1. Analyze formation: Abrasiveness, compressive strength, interbedding.

2. Review rig parameters: RPM range, pump capacity, WOB.

3. Define goals: Maximize ROP or bit life?

4. Consider body type: Matrix for abrasion; steel for impact.

5. Consult experts: Provide logs/data for IADC code and customization.

PDC vs. Tricone Bit: What's the Difference?

PDC and Tricone bits differ significantly in design, application, and performance:

• Cutting Action: PDC bits shear rock, producing fine cuttings, while Tricone bits crush and gouge, generating larger cuttings.

• Suitability: PDC bits excel in non-abrasive formations, while Tricone bits are better for abrasive or mixed formations.

• Cost and Durability: PDC bits have higher upfront costs but can be more cost-effective in suitable conditions due to their longevity. Tricone bits are cheaper initially but may require frequent replacements.

FAQs About PDC Bits

1. How do I choose between a steel body and a matrix body PDC bit?

• Matrix body PDC bits – better abrasion resistance and longer life in hard formations

• Steel body PDC bits – higher impact resistance and easier to rebuild
  Choice depends on formation type and drilling strategy.

2. Can PDC bits be customized?

Yes — manufacturers can tailor PDC bits by blade count, cutter size, nozzle design, and gauge protection to match specific geological conditions and drilling requirements.

3. Are PDC bits suitable for hard rock or geothermal drilling?

Yes, with advancements in cutter technology (thicker diamond tables, conical/impact-resistant shapes, hybrid designs), PDC bits now handle harder formations and high-temperature geothermal wells effectively. They provide better thermal stability than older designs, though matrix bodies or specialized hybrids perform best in extreme abrasion or heat.

PDC bits are a cornerstone of modern drilling, offering unmatched efficiency in soft to medium-hard formations. Their diamond cutters, robust design, and versatility make them ideal for oil, gas, mining, and geothermal applications. However, in highly abrasive or hard formations, Tricone bits may be more suitable. At Sanlong Petroleum, we provide high-quality PDC bits ranging from 3 to 26 inches, meeting ISO and API 7-1 standards. Our expertise ensures optimal performance for your drilling needs.
